Steel Stucture Description:

Pre-engineered buildings are defined by the following geometrical parameters: Building width, Length, Eave height, Roof slope, Sidewall bay spacing, end wall bay spacing and main frame module space. Also design loads are the basic parameter.

Building Length and width are defined by the distance between steel lines. Extreme surface edges of girts and purlins are treated as steel line. Sum of side wall bay spaces will be equal to the building length.

Eave height is the distance from Finished floor level to inter section point of roof and sidewall steel line.

Roof Slope is defined as the ratio between vertical distance and horizontal distance of the roof surface. Standard roof slopes are 0.5:10 and 1.0:10

Prefab steel structure house is generally done with a series of steel structure, including steel columns, steel beams, purlin and so on. These main components constitute the load-bearing structure of the house. Due to light weight and easy construction, there is a great demand for the structural steel house. The steel structure house, the most cost-efficient building, which plays one important role in construction field.

Application

Single-layer/Multi-layer buildings Commercial building

Wide span, multi-span, and high-rise building Simple storage, Hangar

Shopping mall, Exhibition hall, Library, School Industry warehouse, workshop
Characteristics

Environmentally friendly, steel material re-cycled
Flexibility to fix doors, windows, and interior partitions
Beautiful appearance, different colors for the walls and roof

Cost-saving and convenient to transport

Easy and quick install
long service life with over 50 years old
Safe and stable, can withstand a grade 8 earthquake

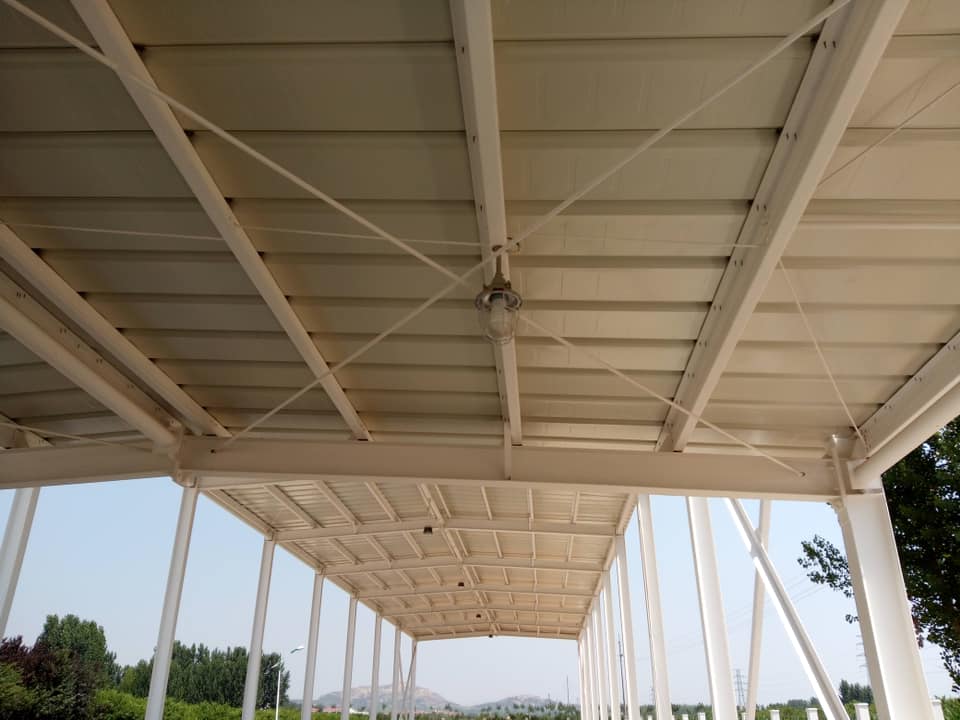

Open wall designed prefabricated metal warehouse barn shed 0



1

Steel Structure Parts (Q235 orQ355) Hot galvanized or
painted.

(1) Steel Column: H Section Steel
(2) steel Beam: H Section Steel
3) Withstand Wind column: H Section Steel
(4) Connected rod: Circular Tube
(5) Roof Purlin: cold-formed galvanized C Section Steel or Z Section Steel
(6) Wall purlin: cold-formed galvanized C Section Steel or Z Section Steel
(7) End Wall purlin: c Section Steel or Z Section Steel

2

Panel Material parts

Wall and Roof panel (optional for different usage)

1) 50mm, 75mm, 100mm, 150mm thickness sandwich panel

(Different insulations for you: EPS, Glassfiber wool, Rockwool, PU)
2) 0.4mm, 0.5mm, 0.6mm Corrugated Galvanized Steel sheet

(Different colors and AZ surface coatings)

3

Door and Window parts

External Gate:

Sliding Door(single opening, double opening)
Electric rolling up shutter(Steel, Aluminum alloy, Insulated)
Man Door:
Steel security door

Aluminum alloy glass door
Window:
PVC Window or aluminum alloy window frame with glass.

4

Drainage parts

water channel/gutter

1-3mm thickness galvanized steel / stainless steel
water spout: 110mm PVC Downspout

5

Supporting part

(1) bracing bar

(2) (2)Horizontal Bracing
(3) angle steel
(4) roof tie bar
(5) Column Bracing

6

Options

(1) Skylight /Ventilator
(2) Crane beam
(3) Canopy
(4) Bolt Foundation bolt, High-strength bolt, Normal bolts.
