Items |
Specification |
||||
|
Main steel frame |
Column |
Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50) |
|||
|
Beam |
Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50) |
||||
|
Secondary Frame |
Purlin |
Q235 C and Z purlin (equivalent to S235JR, ASTM A36) |
|||
|
Knee brace |
Q235 Angle Steel (equivalent to S235JR, ASTM A36) |
||||
|
Tie Rod |
Q235 Circular Steel Pipe (equivalent to S235JR, ASTM A36) |
||||
|
Brace |
Q235 Round Bar (equivalent to S235JR, ASTM A36) |
||||
|
Maintenance system |
Roof Panel |
EPS Sandwich Panel/Glass Fiber Sandwich Panel/ Rock Wool Sandwich Panel |
|
||
|
|
|||||
|
Wall Panel |
Sandwich Panel/ Corrugated Steel Sheet |
|
|
||
|
Accessories |
Window |
Aluminum Alloy Window/ PVC Window/ Sandwich Panel Window |
|||
|
Door |
Sliding Sandwich Panel Door/ Rolling Metal Door/ Personal Door |
||||
|
Structure Usage |
Up to 50 years |
||||
|
Finishing Options |
A vast array of colors and textures available |
||||
| Column and rafter | Tie beam (eave strut) | X Brace |

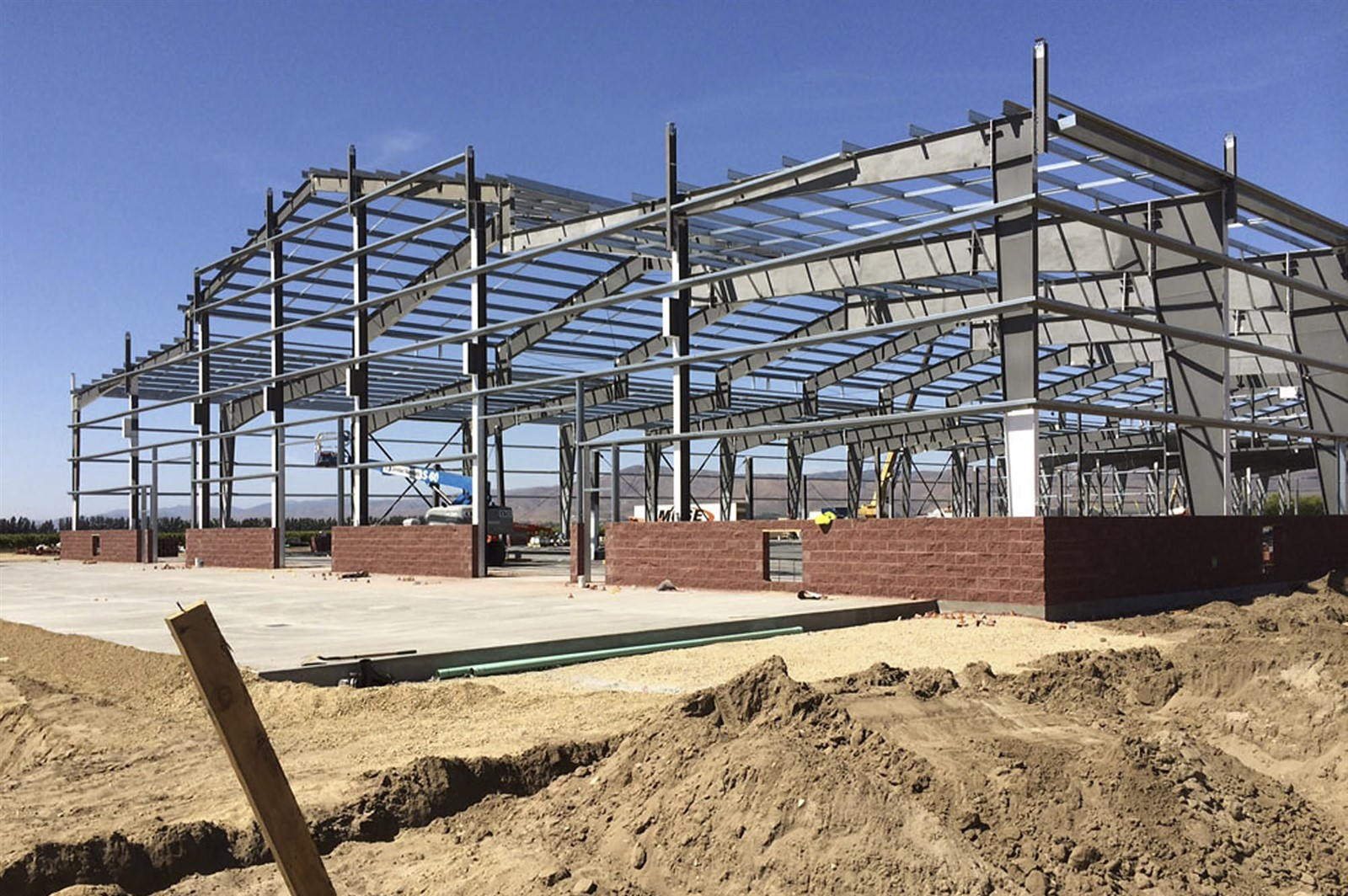

| Main steel structure frame : Material: Weld H beam or hot rolled H beam, etc Grade:Q355 (S355JR) Surface: Hot dip Galvanized zinc coating or Anti-rust paint, rich-zinc epoxy paint, etc Usage: Make up the main steel structure frame |
Strut (Tie beam) on eave and ridge: Material: Round pipe or square tube, etc Grade:Q235 (S235JR) Surface: Hot dip Galvanized zinc coat or Anti-rust paint, rich-zinc epoxy paint,t etc Usage: Avoid the main steel structure frame shake in the length direction |
X brace for roof and wall: Material: Steel Round bar or angle steel, etc Grade:Q235 (S235JR) Surface: Hot dip Galvanized zinc coat or Anti-rust paint, rich-zinc epoxy paint, etc Usage: Make the whole structure stable, tie the whole building into one |
| Purlin & Wall girt | Corrugated steel sheet and flashing trimming | Sandwich panel |
| Purlin: Material: C/Z purlin etc Size:80~300mm,thickness1.8~3.0mm Grade:Q235 (S235JR) Surface: Galvanized zinc coating Applications: For supporting the protection structure and installing cladding panels |
Single sheet: Color: Ral. colors, optional Thickness:0.13-0.8mm Type:V840,V900,etc mutiple wave type Usage: Prefabricated Building Roof or wall coverage or cladding flashing trimming cover: To cover the ridge, wall out corner, etc to avoid leaking air or water |
Sandwich panel or insulation: Structure two-layer PPGI surface sheets and insulation core Type: EPS sandwich panel, Rock wool sandwich panel, Glass wool sandwich panel, PU/PIR sandwich panel, etc Other insulation: glass wool blanket or PE foam Applications: Fireproofing and warm insulation Advantage: Removable, lightweight weight and easy to install |
Support and Services:
1. We supply one-stop service from the 3D model, design drawing and construction drawing, and online technical support, to return and replacement.
2. With a patented pallet, it is easy to load and unload.
3. Nice appearance, smooth surface, and different painting color options for customized.
4. Stable and durable, could withstand strong wind and heavy snow.
5. Cost-effective, low-cost, and fast construction, the materials can be recycled.
