Prefab steel frame structure home house building
Prefabricated steel frame structure residential buildings are an emerging form of construction that uses steel to be prefabricated and then assembled on site. Therefore, they have the advantages of short construction period, high quality, environmental protection, and reliability, and are the current development direction of residential buildings.
1.Short construction period
Prefabricated steel frame residential buildings have obvious advantages in terms of engineering cycle, as most of their components are prefabricated in the factory. This allows for the completion of all processes such as cutting, drilling, and even painting before the start of the project, reducing time on the construction site and thus saving a lot of construction time.
2.High quality
The quality of prefabricated steel frame residential buildings is more stable and reliable because they use high-quality steel materials that have been strictly selected. During the prefabrication process, multiple processing steps are also required to make the product size more accurate and the surface finish higher, which greatly improves the quality.
3.Environmental protection
The environmental advantages of prefabricated steel frame residential buildings cannot be ignored, as they can recycle a large amount of waste residue, crushed stones, and other materials in prefabricated engineering to reduce environmental pollution. Moreover, their own materials can be recycled to avoid waste, thus having very good environmental benefits.
4.Reliable
The main material of prefabricated steel frame residential buildings is steel. Throughout its entire service life, the mechanical properties of the structure are very stable and reliable, and it has stronger seismic and wind resistance in the face of natural disasters (such as earthquakes, typhoons, etc.), making it a significant advantage in building safety.

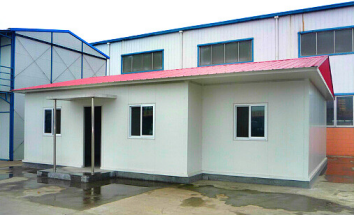

This prefab steel frame house is a sample in our factory for Spanish client. the wall is not EPS sandwich panel. it is a good material--cement foam board. more strong than other sandwich panel.
it took two weeks finished this house with our workers for this two bedrooom house.
Prefab steel house details:
1.Post: Square tube or H steel,different house span and different weather condition with different section.
2.Purline: C section steel with galvanized
3. Top and Ground channel: Galvanized 2mm bending
4. Hardware: All steel structure components are jointed with bolts.
House Body-maintenance system:
Wall panel and roof panel: Color steel sandwich panel. Standard thickness: 50mm, 75mm, 100mm,120mm or 150mm. Double color steel sheet thickness 0.5mm or 0.6mm, the common color including white grey, blue and red. if you like other color, please tell us in advance.

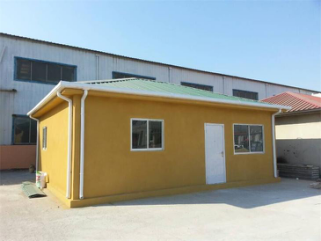

The yellow wall prefab steel house built at Nigeria, the white wall prefab steel house built at Angola. all of these house is 75mm EPS sandwich panel. the house have three bedroom, two washroom, one kitchen, one living. this is a reasonable solution for a family.
if you need a two bedroom house, we also can design and propose it.
|
No. |
Sort |
Name |
Specification |
|
1 |
Specification |
Length |
No limited |
|
2 |
Width |
Less than 11m |
|
|
3 |
Wall height |
2700mm/3000mm |
|
|
4 |
Clear height |
2700mm/3000mm |
|
|
5 |
Roof slope |
20° |
|
|
6 |
Standard accessory |
Wall board |
75mm thickness EPS sandwich panel |
|
7 |
Ceiling |
Gypsum board with light steel keel |
|
|
8 |
Roof |
75mm thickness EPS sandwich panel |
|
|
9 |
Outside door |
Security door, single steel wood door with dimensions of 1000*2200mm |
|
|
10 |
Inside door |
single steel wood door with dimensions of 860*2100mm |
|
|
11 |
Windows |
Aluminium sliding , glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
|
|
12 |
Channel |
Galvanized 3mm bending |
|
|
13 |
Steel column |
Square steel tube Q235. galvanized |
|
|
14 |
Purlin |
C purlin Galvanized |
|
|
15 |
Covering,flashing |
color steel sheet, 0.5mm thickness |
Loading shipping containers:
the worker loaded the roof and wall panel into 40HQ.they put the sandwich panel into container one by one for protecting the board, when our client open the container on site, they are satisfied of our products.
KXD company always has won the praise of customers around the world. so don't worry about the quality, we will deliver with good quality product and good service after sales. another, if any quality issue is found while constructing, let the builders stop immediately and contact us please. we will give you a satisfactory answer.
If you have any request for prefab steel house, please feel free to contact Mr.Andy by followings:
Mr.Andy
Email:kxdandy@chinasteelstructure.cn
Tel:+86 532 85397878
Fax:+86 532 85397878
Mobile/Whatsapp/Wechat:+86 13853233236
Skype:andyyu0074
