Prefab Multi-storey steel structure frame workshop
This prefab multi steel structure frame workshop be used for gold mining. it built at China where a place near the sea. different from other common portal frame workshop and warehouse, this gold minning is a special building and integration engineering, total steel usage 8000 tons. it takes about nine months to finish all components.
Multi-storey steel structure factory building generally adopts frame structure system, also known as multi-storey steel frame structure; it is generally composed of columns, beams, floor structure, supporting structure, wallboard or wall frame. Planar rigid floor should be adopted to ensure the overall spatial stiffness and spatial coordination. When the transverse frame is a column-support system and the plane rigid floor is adopted, the spacing between columns is not more than 4L. The arrangement of column network and beam system is reasonable, the longitudinal and transverse stiffness are uniform, the force transmission of components is clear, the type is unified, the joint structure is simple, and it is convenient for construction.

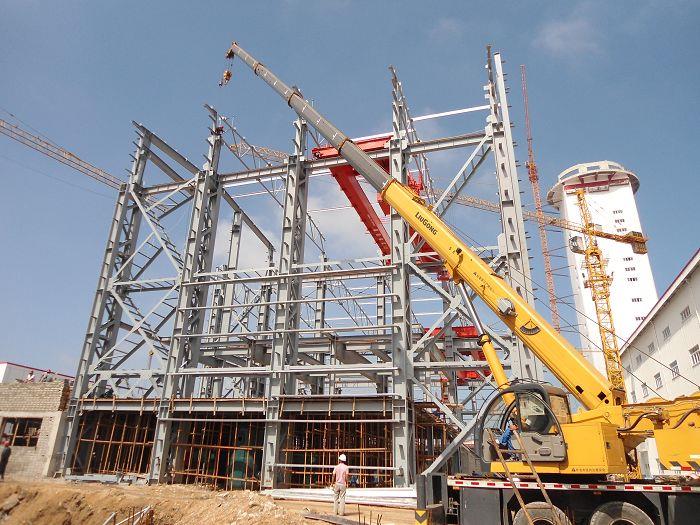

Construction site:
Prefabricated multi-layer steel frame workshop is a modern construction method that uses standardized components to be made first, and then assembled into a building system. This construction method has the characteristics of fast, efficient, and stable quality, and is widely used in industries, commerce, and office areas.
The construction of a prefabricated multi-layer steel frame workshop is roughly divided into five steps: design, production, assembly, installation, and debugging. Firstly, a detailed design is needed to determine the usage requirements and structural design of the workshop. Secondly, carry out production and manufacturing, and process each component according to design requirements. Then, the components are assembled into a frame structure and fixed by welding, bolts, etc. Subsequently, installation is carried out, and the prefabricated components are assembled on site. After assembly, debugging is carried out to ensure the safety and stability of the workshop.
Prefabricated multi-layer steel frame workshops have many advantages. Firstly, due to its use of pre made components and on-site assembly, the construction progress is faster, which can greatly shorten the construction cycle and improve production efficiency. Secondly, the steel structure workshop has the characteristics of lightweight and high-strength, which can greatly reduce the weight of the building and make the workshop more sturdy and durable. Once again, it can flexibly meet different usage needs and achieve columnless free design of huge spaces. In addition, there are fewer environmental issues such as noise, vibration, and dust during the construction of steel structures, which meets the requirements of modern urban construction.
other information for your reference.
1) Different sizes:
MOQ is 200m2, width X length X eave height, if there is a drawing or sketch, send us please.
2) Different types:
Single slope;
Double slope;
Single span;
Double-span;
Multi-span;
Single floor, double floors.
With mezzanine or not.
3) Different Bases:
Cement and steel foundation bolts;
4) Different Columns and Beams:
Material Q345(S355JR)or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section;
5) Different bracings:
X-type or V-type or other type bracing made from angle, round pipe, etc;
) Different Purlins:
C or z type: Size from C120~C320, Z100~Z200;
7) Different Roof and Wall Panel:
Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm; cement foam boar, ALC panel
8) All accessories:
Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc;
9) Surface:
Two lays of Anti-Rust Paint or glavanized;
10) Packing:
Main steel frame with steel pallet load in 40'HQ or without pallet load in 40'OT, roof and wall panel load in 40'HQ;
Contact me now and tell us your idea.
